Verwendung des Plugins
Der Runtime AI Chatbot Integrator bietet zwei Hauptfunktionen: Text-zu-Text-Chat und Text-zu-Sprache (TTS). Beide Funktionen folgen einem ähnlichen Workflow:
- Registrieren Sie Ihren API-Provider-Token
- Konfigurieren Sie funktionsspezifische Einstellungen
- Senden Sie Anfragen und verarbeiten Sie Antworten
Provider-Token registrieren
Bevor Sie Anfragen senden, registrieren Sie Ihren API-Provider-Token mit der Funktion RegisterProviderToken
.
- Blueprint
- C++
// Register an OpenAI provider token, as an example
UAIChatbotCredentialsManager::RegisterProviderToken(
EAIChatbotIntegratorOrgs::OpenAI,
TEXT("sk-xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx")
);
Text-zu-Text-Chat-Funktionalität
Das Plugin unterstützt zwei Chat-Anfragemodi für jeden Anbieter:
Nicht-Streaming-Chat-Anfragen
Erhalten Sie die vollständige Antwort in einem einzigen Aufruf.
- OpenAI
- DeepSeek
- Claude
- Blueprint
- C++
// Example of sending a non-streaming chat request to OpenAI
FChatbotIntegrator_OpenAISettings Settings;
Settings.Messages.Add(FChatbotIntegrator_OpenAIMessage(
EChatbotIntegrator_OpenAIRole::SYSTEM,
TEXT("You are a helpful assistant.")
));
Settings.Messages.Add(FChatbotIntegrator_OpenAIMessage(
EChatbotIntegrator_OpenAIRole::USER,
TEXT("What is the capital of France?")
));
UAIChatbotIntegratorOpenAI::SendChatRequestNative(
Settings,
FOnOpenAIChatCompletionResponseNative::CreateWeakLambda(
this,
[this](const FString& Response, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
UE_LOG(LogTemp, Log, TEXT("Chat completion response: %s, Error: %d: %s"),
*Response, ErrorStatus.bIsError, *ErrorStatus.ErrorMessage);
}
)
);
- Blueprint
- C++
// Example of sending a non-streaming chat request to DeepSeek
FChatbotIntegrator_DeepSeekSettings Settings;
Settings.Messages.Add(FChatbotIntegrator_DeepSeekMessage(
EChatbotIntegrator_DeepSeekRole::SYSTEM,
TEXT("You are a helpful assistant.")
));
Settings.Messages.Add(FChatbotIntegrator_DeepSeekMessage(
EChatbotIntegrator_DeepSeekRole::USER,
TEXT("What is the capital of France?")
));
UAIChatbotIntegratorDeepSeek::SendChatRequestNative(
Settings,
FOnDeepSeekChatCompletionResponseNative::CreateWeakLambda(
this,
[this](const FString& Reasoning, const FString& Content, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
UE_LOG(LogTemp, Log, TEXT("Chat completion reasoning: %s, Content: %s, Error: %d: %s"),
*Reasoning, *Content, ErrorStatus.bIsError, *ErrorStatus.ErrorMessage);
}
)
);
- Blueprint
- C++
// Example of sending a non-streaming chat request to Claude
FChatbotIntegrator_ClaudeSettings Settings;
Settings.Messages.Add(FChatbotIntegrator_ClaudeMessage(
EChatbotIntegrator_ClaudeRole::SYSTEM,
TEXT("You are a helpful assistant.")
));
Settings.Messages.Add(FChatbotIntegrator_ClaudeMessage(
EChatbotIntegrator_ClaudeRole::USER,
TEXT("What is the capital of France?")
));
UAIChatbotIntegratorClaudeStream::SendStreamingChatRequestNative(
Settings,
FOnClaudeChatCompletionStreamNative::CreateWeakLambda(
this,
[this](const FString& Response, bool IsFinalChunk, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
UE_LOG(LogTemp, Log, TEXT("Streaming chat completion response: %s, IsFinalChunk: %d, Error: %d: %s"),
*Response, IsFinalChunk, ErrorStatus.bIsError, *ErrorStatus.ErrorMessage);
}
)
);
Streaming-Chat-Anfragen
Empfangen Sie Antworten in Echtzeit für eine dynamischere Interaktion.
- OpenAI
- DeepSeek
- Claude
- Blueprint
- C++
// Example of sending a streaming chat request to OpenAI
FChatbotIntegrator_OpenAISettings Settings;
Settings.Messages.Add(FChatbotIntegrator_OpenAIMessage(
EChatbotIntegrator_OpenAIRole::SYSTEM,
TEXT("You are a helpful assistant.")
));
Settings.Messages.Add(FChatbotIntegrator_OpenAIMessage(
EChatbotIntegrator_OpenAIRole::USER,
TEXT("What is the capital of France?")
));
UAIChatbotIntegratorOpenAIStream::SendStreamingChatRequestNative(
Settings,
FOnOpenAIChatCompletionStreamNative::CreateWeakLambda(
this,
[this](const FString& Response, bool IsFinalChunk, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
UE_LOG(LogTemp, Log, TEXT("Streaming chat completion response: %s, IsFinalChunk: %d, Error: %d: %s"),
*Response, IsFinalChunk, ErrorStatus.bIsError, *ErrorStatus.ErrorMessage);
}
)
);
- Blueprint
- C++
// Example of sending a streaming chat request to DeepSeek
FChatbotIntegrator_DeepSeekSettings Settings;
Settings.Messages.Add(FChatbotIntegrator_DeepSeekMessage(
EChatbotIntegrator_DeepSeekRole::SYSTEM,
TEXT("You are a helpful assistant.")
));
Settings.Messages.Add(FChatbotIntegrator_DeepSeekMessage(
EChatbotIntegrator_DeepSeekRole::USER,
TEXT("What is the capital of France?")
));
UAIChatbotIntegratorDeepSeekStream::SendStreamingChatRequestNative(
Settings,
FOnDeepSeekChatCompletionStreamNative::CreateWeakLambda(
this,
[this](const FString& ReasoningChunk, const FString& ContentChunk,
bool IsReasoningFinalChunk, bool IsContentFinalChunk,
const FChatbotIntegratorErrorStatus& ErrorStatus)
{
UE_LOG(LogTemp, Log, TEXT("Streaming chat completion reasoning chunk: %s, Content chunk: %s, IsReasoningFinalChunk: %d, IsContentFinalChunk: %d, Error: %d: %s"),
*ReasoningChunk, *ContentChunk, IsReasoningFinalChunk, IsContentFinalChunk,
ErrorStatus.bIsError, *ErrorStatus.ErrorMessage);
}
)
);
- Blueprint
- C++
// Example of sending a streaming chat request to Claude
FChatbotIntegrator_ClaudeSettings Settings;
Settings.Messages.Add(FChatbotIntegrator_ClaudeMessage(
EChatbotIntegrator_ClaudeRole::SYSTEM,
TEXT("You are a helpful assistant.")
));
Settings.Messages.Add(FChatbotIntegrator_ClaudeMessage(
EChatbotIntegrator_ClaudeRole::USER,
TEXT("What is the capital of France?")
));
UAIChatbotIntegratorClaudeStream::SendStreamingChatRequestNative(
Settings,
FOnClaudeChatCompletionStreamNative::CreateWeakLambda(
this,
[this](const FString& Response, bool IsFinalChunk, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
UE_LOG(LogTemp, Log, TEXT("Streaming chat completion response: %s, IsFinalChunk: %d, Error: %d: %s"),
*Response, IsFinalChunk, ErrorStatus.bIsError, *ErrorStatus.ErrorMessage);
}
)
);
Text-to-Speech (TTS)-Funktionalität
Konvertieren Sie Text in hochwertige Sprachaudio mit führenden TTS-Anbietern. Das Plugin gibt Roh-Audiodaten (TArray<uint8>
) zurück, die Sie entsprechend den Anforderungen Ihres Projekts verarbeiten können.
Während die folgenden Beispiele die Audioverarbeitung für die Wiedergabe mit dem Runtime Audio Importer-Plugin demonstrieren (siehe Audio-Import-Dokumentation), ist der Runtime AI Chatbot Integrator flexibel gestaltet. Das Plugin gibt einfach die Roh-Audiodaten zurück und überlässt Ihnen die vollständige Freiheit, wie Sie diese für Ihren spezifischen Anwendungsfall verarbeiten. Dies kann Audio-Wiedergabe, Speicherung in Dateien, weitere Audioverarbeitung, Übertragung an andere Systeme, benutzerdefinierte Visualisierungen und mehr umfassen.
Nicht-Streaming TTS-Anfragen
Nicht-Streaming TTS-Anfragen liefern die vollständigen Audiodaten in einer einzigen Antwort, nachdem der gesamte Text verarbeitet wurde. Dieser Ansatz eignet sich für kürzere Texte, bei denen das Warten auf die vollständigen Audiodaten kein Problem darstellt.
- OpenAI TTS
- ElevenLabs TTS
- Blueprint
- C++
// Example of sending a TTS request to OpenAI
FChatbotIntegrator_OpenAITTSSettings TTSSettings;
TTSSettings.Input = TEXT("Hello, this is a test of text-to-speech functionality.");
TTSSettings.Voice = EChatbotIntegrator_OpenAITTSVoice::NOVA;
TTSSettings.Speed = 1.0f;
TTSSettings.ResponseFormat = EChatbotIntegrator_OpenAITTSFormat::MP3;
UAIChatbotIntegratorOpenAITTS::SendTTSRequestNative(
TTSSettings,
FOnElevenLabsTTSResponseNative::CreateWeakLambda(
this,
[this](const TArray<uint8>& AudioData, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
if (!ErrorStatus.bIsError)
{
// Process the audio data using Runtime Audio Importer plugin
// Example: Import the audio data as a sound wave
UE_LOG(LogTemp, Log, TEXT("Received TTS audio data: %d bytes"), AudioData.Num());
// Audio data can be imported using Runtime Audio Importer plugin
URuntimeAudioImporterLibrary* RuntimeAudioImporter = URuntimeAudioImporterLibrary::CreateRuntimeAudioImporter();
RuntimeAudioImporter->AddToRoot();
RuntimeAudioImporter->OnResultNative.AddWeakLambda(this, [this](URuntimeAudioImporterLibrary* Importer, UImportedSoundWave* ImportedSoundWave, ERuntimeImportStatus Status)
{
if (Status == ERuntimeImportStatus::SuccessfulImport)
{
UE_LOG(LogTemp, Warning, TEXT("Successfully imported audio with sound wave %s"), *ImportedSoundWave->GetName());
// Here you can handle ImportedSoundWave playback, like "UGameplayStatics::PlaySound2D(GetWorld(), ImportedSoundWave);"
}
else
{
UE_LOG(LogTemp, Error, TEXT("Failed to import audio"));
}
Importer->RemoveFromRoot();
});
RuntimeAudioImporter->ImportAudioFromBuffer(AudioData, ERuntimeAudioFormat::Mp3);
}
else
{
UE_LOG(LogTemp, Error, TEXT("TTS request failed: %s"), *ErrorStatus.ErrorMessage);
}
}
)
);
- Blueprint
- C++

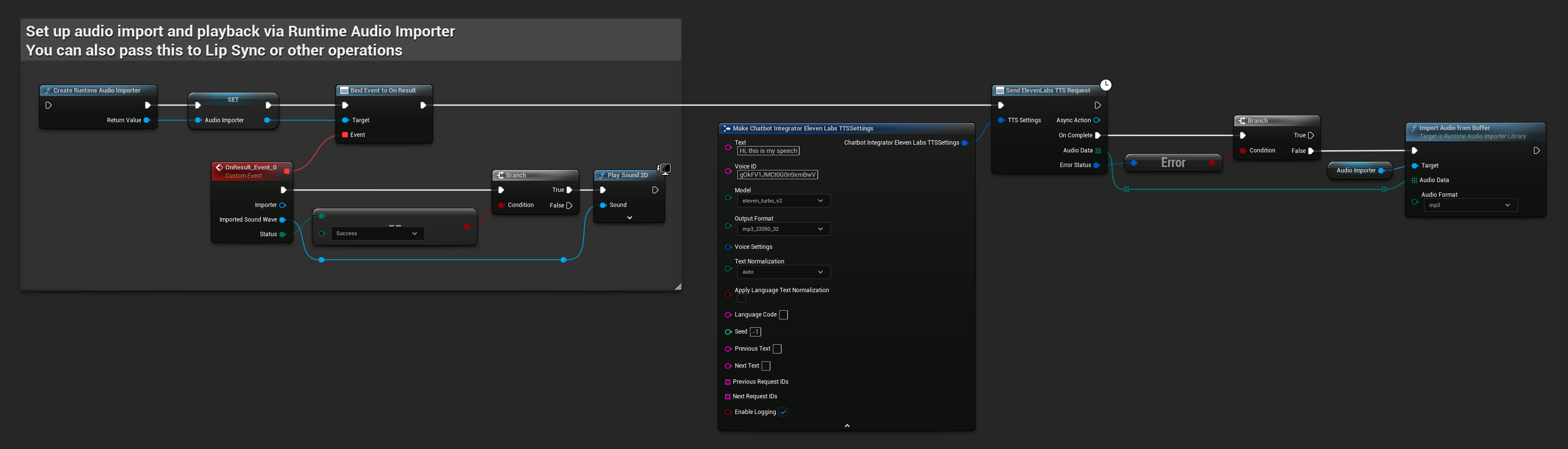

// Example of sending a TTS request to ElevenLabs
FChatbotIntegrator_ElevenLabsTTSSettings TTSSettings;
TTSSettings.Text = TEXT("Hello, this is a test of text-to-speech functionality.");
TTSSettings.VoiceID = TEXT("your-voice-id"); // Replace with actual voice ID
TTSSettings.Model = EChatbotIntegrator_ElevenLabsTTSModel::ELEVEN_TURBO_V2;
TTSSettings.OutputFormat = EChatbotIntegrator_ElevenLabsTTSFormat::MP3_44100_128;
UAIChatbotIntegratorElevenLabsTTS::SendTTSRequestNative(
TTSSettings,
FOnElevenLabsTTSResponseNative::CreateWeakLambda(
this,
[this](const TArray<uint8>& AudioData, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
if (!ErrorStatus.bIsError)
{
// Process the audio data using Runtime Audio Importer plugin
// Example: Import the audio data as a sound wave
UE_LOG(LogTemp, Log, TEXT("Received TTS audio data: %d bytes"), AudioData.Num());
// Audio data can be imported using Runtime Audio Importer plugin
URuntimeAudioImporterLibrary* RuntimeAudioImporter = URuntimeAudioImporterLibrary::CreateRuntimeAudioImporter();
RuntimeAudioImporter->AddToRoot();
RuntimeAudioImporter->OnResultNative.AddWeakLambda(this, [this](URuntimeAudioImporterLibrary* Importer, UImportedSoundWave* ImportedSoundWave, ERuntimeImportStatus Status)
{
if (Status == ERuntimeImportStatus::SuccessfulImport)
{
UE_LOG(LogTemp, Warning, TEXT("Successfully imported audio with sound wave %s"), *ImportedSoundWave->GetName());
// Here you can handle ImportedSoundWave playback, like "UGameplayStatics::PlaySound2D(GetWorld(), ImportedSoundWave);"
}
else
{
UE_LOG(LogTemp, Error, TEXT("Failed to import audio"));
}
Importer->RemoveFromRoot();
});
RuntimeAudioImporter->ImportAudioFromBuffer(AudioData, ERuntimeAudioFormat::Mp3);
}
else
{
UE_LOG(LogTemp, Error, TEXT("TTS request failed: %s"), *ErrorStatus.ErrorMessage);
}
}
)
);
Streaming TTS Anfragen
Streaming TTS liefert Audio-Chunks während ihrer Generierung, sodass Sie Daten inkrementell verarbeiten können, anstatt auf die vollständige Synthese des Audios warten zu müssen. Dies reduziert die wahrgenommene Latenz für längere Texte erheblich und ermöglicht Echtzeitanwendungen.
- OpenAI Streaming TTS

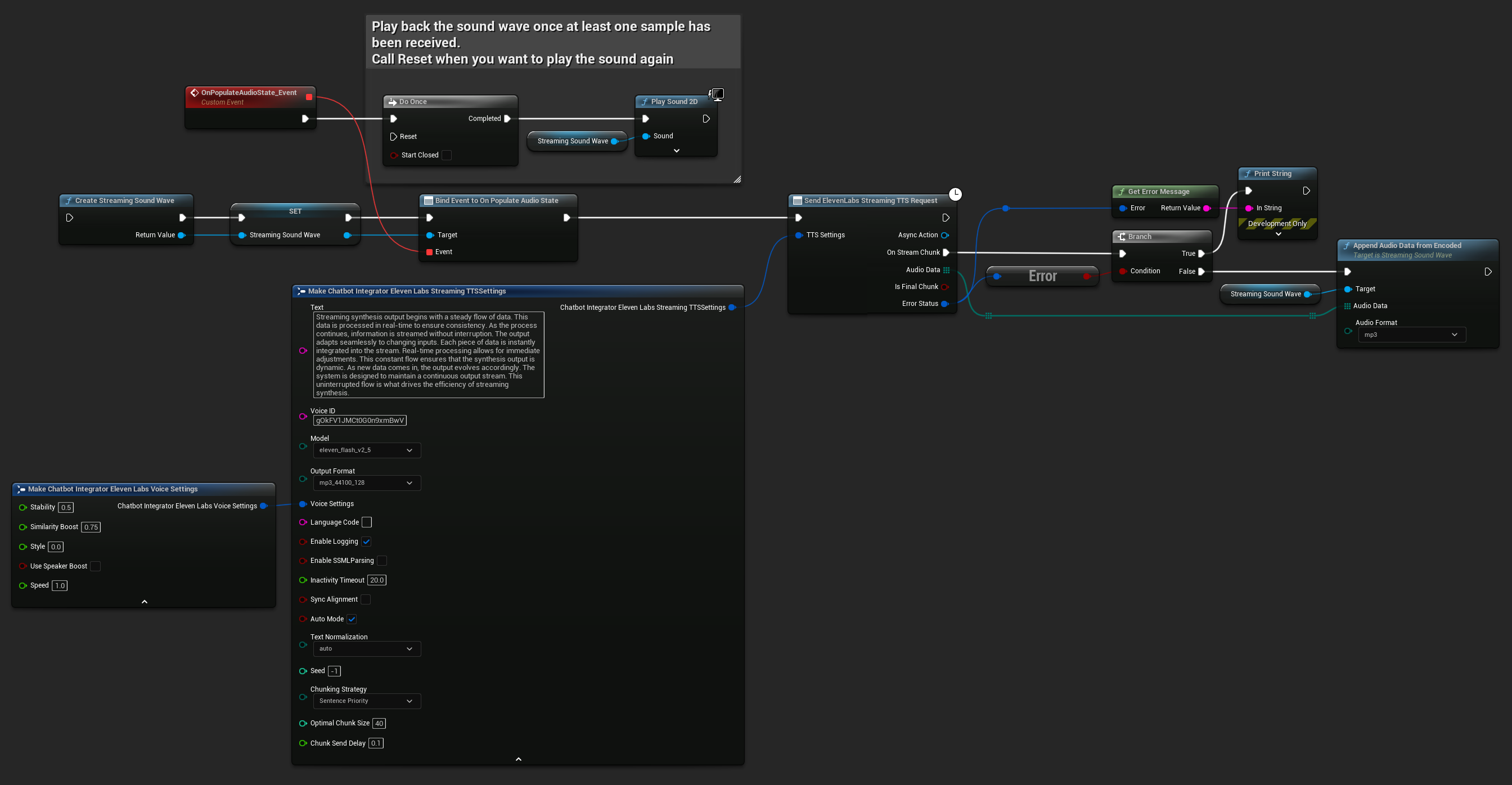

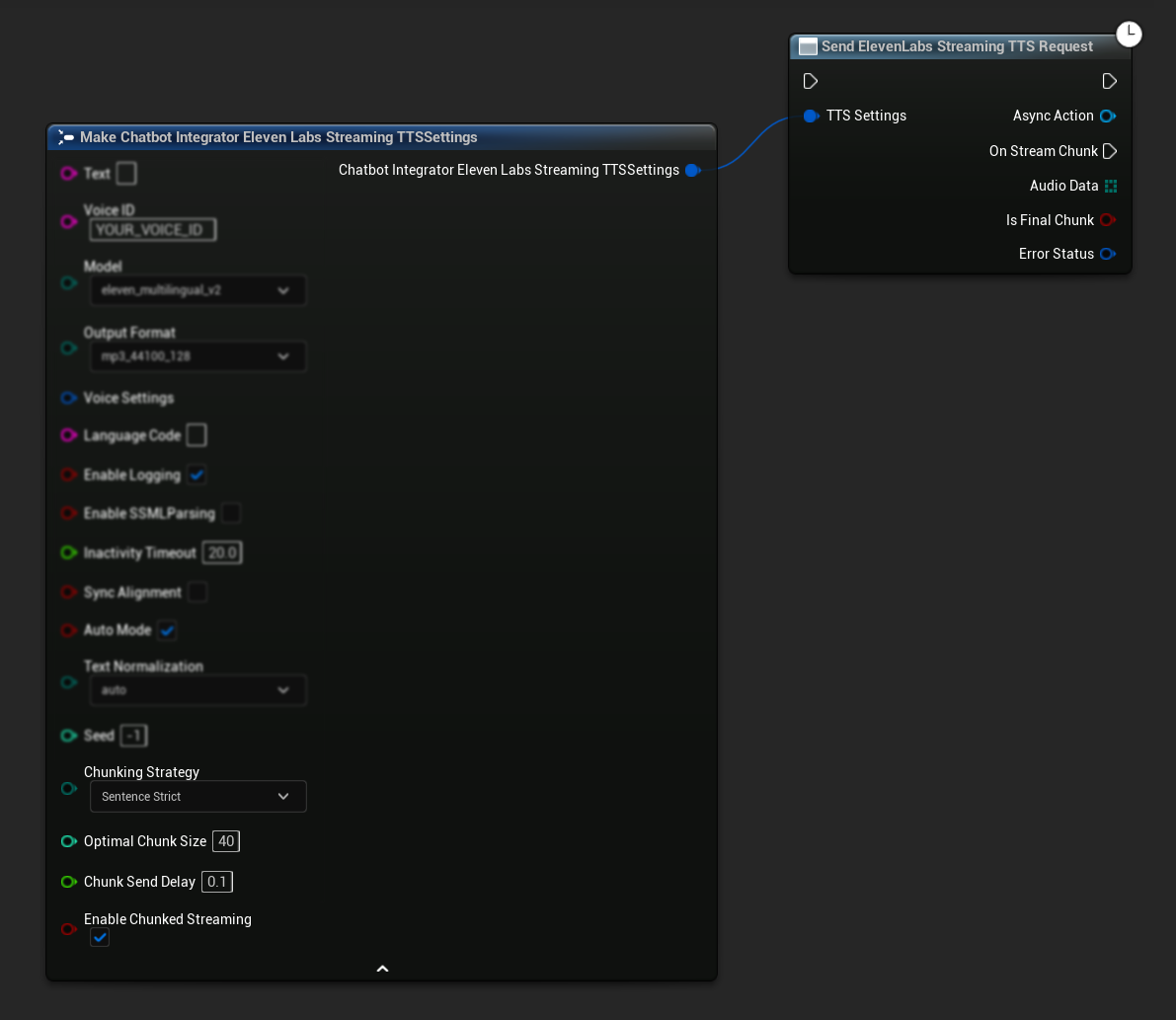

- ElevenLabs Streaming TTS
- Blueprint
- C++
UPROPERTY()
UStreamingSoundWave* StreamingSoundWave;
UPROPERTY()
bool bIsPlaying = false;
UFUNCTION(BlueprintCallable)
void StartStreamingTTS()
{
// Create a sound wave for streaming if not already created
if (!StreamingSoundWave)
{
StreamingSoundWave = UStreamingSoundWave::CreateStreamingSoundWave();
StreamingSoundWave->OnPopulateAudioStateNative.AddWeakLambda(this, [this]()
{
if (!bIsPlaying)
{
bIsPlaying = true;
UGameplayStatics::PlaySound2D(GetWorld(), StreamingSoundWave);
}
});
}
FChatbotIntegrator_OpenAIStreamingTTSSettings TTSSettings;
TTSSettings.Text = TEXT("Streaming synthesis output begins with a steady flow of data. This data is processed in real-time to ensure consistency. As the process continues, information is streamed without interruption. The output adapts seamlessly to changing inputs. Each piece of data is instantly integrated into the stream. Real-time processing allows for immediate adjustments. This constant flow ensures that the synthesis output is dynamic. As new data comes in, the output evolves accordingly. The system is designed to maintain a continuous output stream. This uninterrupted flow is what drives the efficiency of streaming synthesis.");
TTSSettings.Voice = EChatbotIntegrator_OpenAIStreamingTTSVoice::ALLOY;
UAIChatbotIntegratorOpenAIStreamTTS::SendStreamingTTSRequestNative(TTSSettings, FOnOpenAIStreamingTTSNative::CreateWeakLambda(this, [this](const TArray<uint8>& AudioData, bool IsFinalChunk, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
if (!ErrorStatus.bIsError)
{
// Process the audio data using Runtime Audio Importer plugin
// Example: Stream audio data into a sound wave
UE_LOG(LogTemp, Log, TEXT("Received TTS audio data: %d bytes"), AudioData.Num());
StreamingSoundWave->AppendAudioDataFromRAW(AudioData, ERuntimeRAWAudioFormat::Int16, 24000, 1);
}
else
{
UE_LOG(LogTemp, Error, TEXT("TTS request failed: %s"), *ErrorStatus.ErrorMessage);
}
}));
}
- Blueprint
- C++
UPROPERTY()
UStreamingSoundWave* StreamingSoundWave;
UPROPERTY()
bool bIsPlaying = false;
UFUNCTION(BlueprintCallable)
void StartStreamingTTS()
{
// Create a sound wave for streaming if not already created
if (!StreamingSoundWave)
{
StreamingSoundWave = UStreamingSoundWave::CreateStreamingSoundWave();
StreamingSoundWave->OnPopulateAudioStateNative.AddWeakLambda(this, [this]()
{
if (!bIsPlaying)
{
bIsPlaying = true;
UGameplayStatics::PlaySound2D(GetWorld(), StreamingSoundWave);
}
});
}
FChatbotIntegrator_ElevenLabsStreamingTTSSettings TTSSettings;
TTSSettings.Text = TEXT("Streaming synthesis output begins with a steady flow of data. This data is processed in real-time to ensure consistency. As the process continues, information is streamed without interruption. The output adapts seamlessly to changing inputs. Each piece of data is instantly integrated into the stream. Real-time processing allows for immediate adjustments. This constant flow ensures that the synthesis output is dynamic. As new data comes in, the output evolves accordingly. The system is designed to maintain a continuous output stream. This uninterrupted flow is what drives the efficiency of streaming synthesis.");
TTSSettings.Model = EChatbotIntegrator_ElevenLabsTTSModel::ELEVEN_TURBO_V2_5;
TTSSettings.OutputFormat = EChatbotIntegrator_ElevenLabsTTSFormat::MP3_22050_32;
TTSSettings.VoiceID = TEXT("YOUR_VOICE_ID");
UAIChatbotIntegratorElevenLabsStreamTTS::SendStreamingTTSRequestNative(GetWorld(), TTSSettings, FOnElevenLabsStreamingTTSNative::CreateWeakLambda(this, [this](const TArray<uint8>& AudioData, bool IsFinalChunk, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
if (!ErrorStatus.bIsError)
{
// Process the audio data using Runtime Audio Importer plugin
// Example: Stream audio data into a sound wave
UE_LOG(LogTemp, Log, TEXT("Received TTS audio data: %d bytes"), AudioData.Num());
StreamingSoundWave->AppendAudioDataFromEncoded(AudioData, ERuntimeAudioFormat::Mp3);
}
else
{
UE_LOG(LogTemp, Error, TEXT("TTS request failed: %s"), *ErrorStatus.ErrorMessage);
}
}));
}
Fehlerbehandlung
Beim Senden von Anfragen ist es entscheidend, potenzielle Fehler durch Überprüfung des ErrorStatus
in Ihrem Callback zu behandeln. Der ErrorStatus
liefert Informationen über Probleme, die während der Anfrage auftreten können.
- Blueprint
- C++
// Example of error handling in a request
UAIChatbotIntegratorOpenAI::SendChatRequestNative(
Settings,
FOnOpenAIChatCompletionResponseNative::CreateWeakLambda(
this,
[this](const FString& Response, const FChatbotIntegratorErrorStatus& ErrorStatus)
{
if (ErrorStatus.bIsError)
{
// Handle the error
UE_LOG(LogTemp, Error, TEXT("Chat request failed: %s"), *ErrorStatus.ErrorMessage);
}
else
{
// Process the successful response
UE_LOG(LogTemp, Log, TEXT("Received response: %s"), *Response);
}
}
)
);
Anfragen abbrechen
Das Plugin ermöglicht es Ihnen, sowohl Text-zu-Text- als auch TTS-Anfragen während ihrer Ausführung abzubrechen. Dies kann nützlich sein, wenn Sie eine lang laufende Anfrage unterbrechen oder den Gesprächsfluss dynamisch ändern möchten.
- Blueprint
- C++
// Example of cancelling requests
UAIChatbotIntegratorOpenAI* ChatRequest = UAIChatbotIntegratorOpenAI::SendChatRequestNative(
ChatSettings,
ChatResponseCallback
);
// Cancel the chat request at any time
ChatRequest->Cancel();
// TTS requests can be cancelled similarly
UAIChatbotIntegratorOpenAITTS* TTSRequest = UAIChatbotIntegratorOpenAITTS::SendTTSRequestNative(
TTSSettings,
TTSResponseCallback
);
// Cancel the TTS request
TTSRequest->Cancel();
Best Practices
- Behandeln Sie potenzielle Fehler stets durch Überprüfung des
ErrorStatus
in Ihrem Callback - Beachten Sie API-Ratelimits und Kosten
- Verwenden Sie den Streaming-Modus für längere oder interaktive Konversationen
- Ziehen Sie in Betracht, nicht mehr benötigte Requests abzubrechen, um Ressourcen effizient zu verwalten
- Nutzen Sie Streaming TTS für längere Texte, um die wahrgenommene Latenz zu reduzieren
- Für Audioverarbeitung bietet das Runtime Audio Importer Plugin eine praktische Lösung, Sie können jedoch auch eine benutzerdefinierte Verarbeitung basierend auf Ihren Projektanforderungen implementieren
Troubleshooting
- Überprüfen Sie, ob Ihre API-Zugangsdaten korrekt sind
- Prüfen Sie Ihre Internetverbindung
- Stellen Sie sicher, dass alle Audioverarbeitungsbibliotheken (wie Runtime Audio Importer) korrekt installiert sind, wenn Sie mit TTS-Funktionen arbeiten
- Vergewissern Sie sich, dass Sie das korrekte Audioformat bei der Verarbeitung von TTS-Antwortdaten verwenden
- Für Streaming TTS: Stellen Sie sicher, dass Sie Audioblöcke korrekt verarbeiten
